- 7935 mm Vertical Reach Serves high-bay racking to nearly eight metres without ground-level handling.
- 40 kg Tote Payload Handles totes and cases at height, consistent across the RoboShuttle family.
- 1.5 m/s Loaded Travel Faster under load than the taller RS11-DA, favouring throughput over maximum reach.
- 900 kg Stabilising Mass Structural mass keeps the 4700 mm mast steady while handling totes at full extension.
- 1800 x 1000 mm Footprint Matches the RS11-DA, so both models fit the same aisle geometry.
- 10-Second Lift Cycle Two seconds quicker than the RS11-DA's cycle at its greater height.
Description

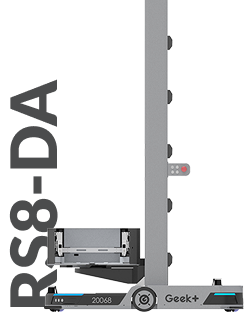

The Geek+ RS8-DA works vertically. It carries a 40 kg tote to a height of 7935 mm — close to eight metres — retrieving and replacing stock across the full face of high-bay racking without a person leaving the ground.
The machine that does this is substantial: 1800 x 1000 mm on the floor, 4700 mm tall, and 900 kg. That mass is structure, not payload, and it is what keeps a mast stable while a tote is handled at height. Travel is 1.8 m/s empty and 1.5 m/s loaded, with a ten-second lift cycle.
Compared with the taller RS11-DA it gives up about 2.8 m of reach and gains speed under load, which is the trade worth making where racking tops out around eight metres and throughput matters more than the last tier of storage.
Key Capabilities
- 7935 mm Vertical Reach: Serves high-bay racking to nearly eight metres without ground-level handling.
- 40 kg Tote Payload: Handles totes and cases at height, consistent across the RoboShuttle family.
- 1.5 m/s Loaded Travel: Faster under load than the taller RS11-DA, favouring throughput over maximum reach.
- 900 kg Stabilising Mass: Structural mass keeps the 4700 mm mast steady while handling totes at full extension.
- 1800 x 1000 mm Footprint: Matches the RS11-DA, so both models fit the same aisle geometry.
- 10-Second Lift Cycle: Two seconds quicker than the RS11-DA's cycle at its greater height.
This model is offered on a quotation basis. Fleet size, rack and tote dimensions, control-system integration, and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, fleet software, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | Geek+ |
|---|---|
| Model | RS8-DA |
| Maximum Payload | 40 Kg |
| Maximum Speed with Load | 1.5 m/s |
| Minimum Lifting Time | 10 s |
| Maximum Speed without Load | 1.8 m/s |
| Maximum Lifting Height | 7935 mm |
| Dimensions | 1800 mm X 1000 mm X 4700 mm |
| Weight | 900 Kg |
Industries
Frequently Asked Questions
A rack-climbing shuttle robot that retrieves and replaces totes across high-bay racking, reaching 7935 mm.
40 kg per tote.
The RS8-DA reaches 7935 mm and travels at 1.5 m/s loaded. The RS11-DA reaches 10765 mm but travels at 1.2 m/s loaded and has a longer lift cycle. Choose by rack height against required throughput.
1800 mm x 1000 mm x 4700 mm, weighing 900 kg.
Per project, against rack height, aisle layout, fleet size and control-system integration.
