- Mobile platform and cobot in one Integrates SIASUN's self-developed mobile base and collaborative arm, taking handling, assembly, inspection, and precision processing tasks anywhere on the floor.
- 670 kg platform load The mobile platform carries loads up to 670 kg while keeping a compact 1250*600*700mm vehicle footprint.
- ±0.3 mm overall accuracy SLAM and QR code navigation combine for a maximum overall accuracy of ±0.3 mm, precise enough for loading, unloading, and inspection tasks.
- Real-time ground and airspace safety Comprehensive safety protection monitors the ground and the space around the arm in real time, enabling safe human-robot collaboration.
- Single-screen teaching pendant One integrated pendant handles visual interaction and debugging for both the platform and the arm, cutting deployment time.
- Three charging modes for 24/7 use Contact-based, wireless, and automatic charging support short-term, real-time, and continuous around-the-clock operation.
Описание

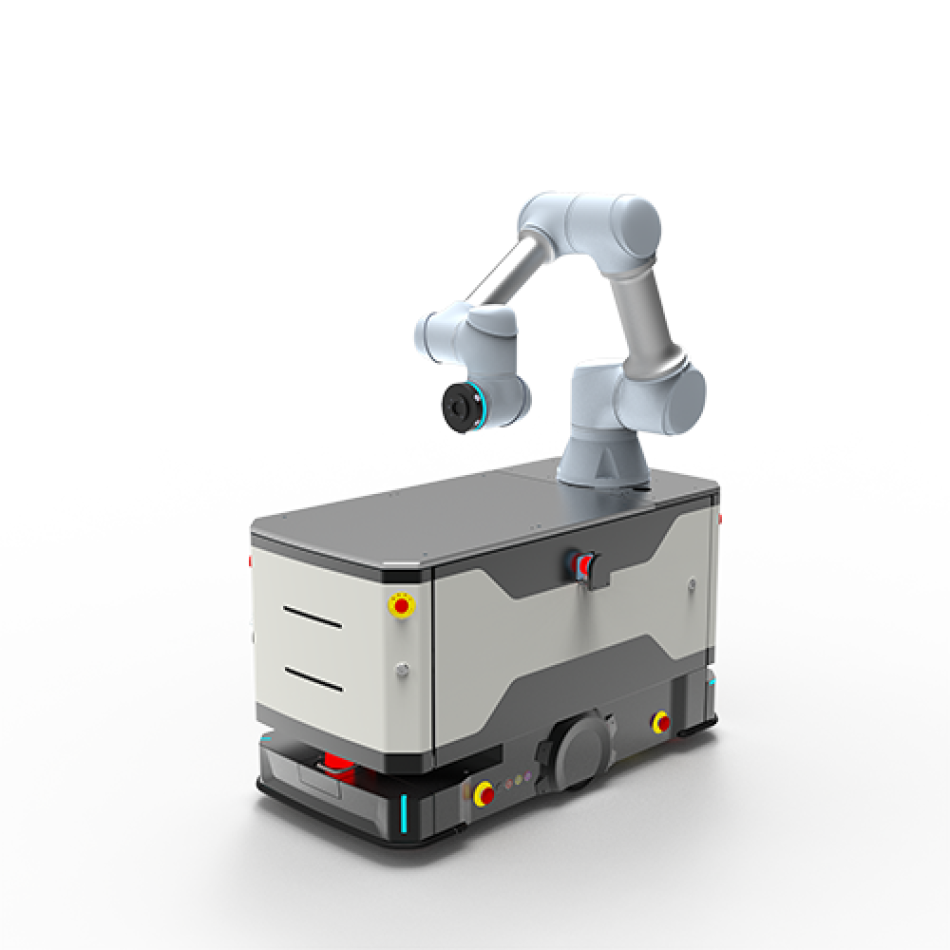

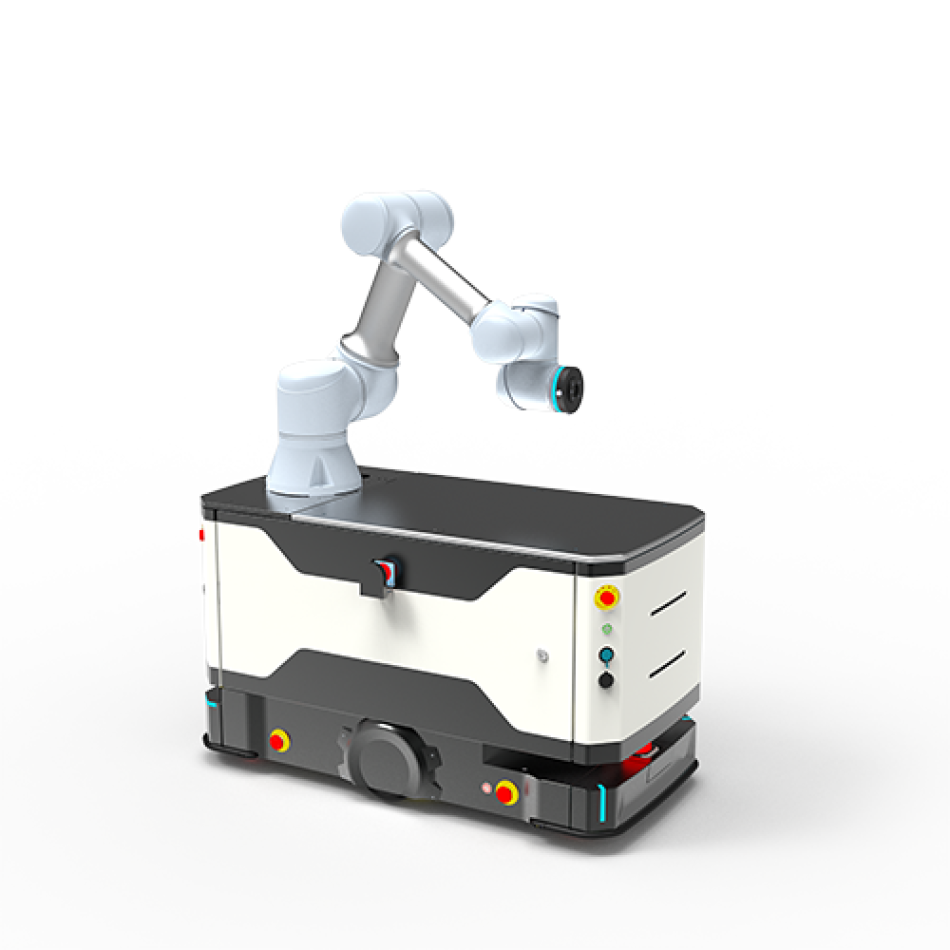

The SIASUN HC-X2-B is a DUCO mobile collaborative robot that integrates SIASUN's self-developed mobile platform and collaborative robot arm into a single unit. Configured with SIASUN's own vision systems, grippers, and other execution units, it performs material handling, assembly, inspection, and precision processing wherever it is needed on the floor rather than at one fixed station. The platform carries up to 670 kg, achieves a maximum overall accuracy of ±0.3 mm, and navigates using SLAM combined with QR code positioning — precision suited to machine loading and unloading as well as inspection duties.
Safety protection is comprehensive, monitoring both the ground and the airspace around the arm in real time so the robot can work safely alongside people. A chassis wheel system designed specifically for mobile collaborative robots delivers added stability and reliability, while the integrated teaching pendant combines visual interaction and debugging for the mobile platform and the arm on one screen, speeding up deployment. Contact-based, wireless, and automatic charging options support short-term, real-time, and 24/7 operating patterns, and multiple interaction and communication methods allow seamless integration with existing customer systems. Vehicle dimensions of 1250 x 600 x 700 mm keep the footprint compact for production aisles.
Характеристики
Характеристики
| Brand | SIASUN |
|---|---|
| Model | HC-X2-B |
| Type | DUCO mobile collaborative robot |
| Platform Load | 670kg |
| Max Overall Accuracy | ±0.3mm |
| Navigation Method | SLAM & QR code |
| Vehicle Dimensions | 1250*600*700mm |
| Charging Options | Contact-based, wireless, and automatic |
| Optional Equipment | Vision systems, grippers, and other execution units |
| Control | Integrated teaching pendant (platform and arm on one screen) |
| Application Area | Inspection, loading and unloading |
Отрасли
Часто задаваемые вопросы
The HC-X2-B is a mobile collaborative robot used for material handling, assembly, inspection, and precision processing. Its documented application areas are inspection and machine loading and unloading, making it a fit for manufacturing and intralogistics environments where tasks are spread across multiple stations.
The platform carries up to 670 kg, achieves a maximum overall accuracy of ±0.3 mm, and navigates via SLAM combined with QR code positioning. Vehicle dimensions are 1250*600*700mm, and it supports contact-based, wireless, and automatic charging for short-term, real-time, or 24/7 operation.
The V-Series is a fixed industrial robot arm that works at a single station, while the HC-X2-B is a mobile collaborative robot — it drives its arm between locations on an autonomous platform and includes real-time ground and airspace safety protection for working alongside people.
Yes. It can be equipped with SIASUN's self-developed vision systems, grippers, and other execution units, and its multiple interaction and communication methods are designed for seamless integration with existing customer systems.
Pricing is available on request — contact Robotix Market via the quote or inquiry form for pricing, availability, and shipping details. The HC-X2-B is covered by SIASUN's manufacturer warranty, and Robotix Market ships worldwide.
