- 1500 kg rated load Handles material transfers up to 1500 kg, giving mid-heavy intralogistics tasks a fully autonomous transport solution.
- Under-ride design with 60 mm lift Accesses pick-up points precisely from beneath the load and lifts smoothly and stably by 60 mm for transport.
- Flexible SLAM + QR code navigation Runs on SLAM with QR code guidance or QR code alone, adapting to the navigation infrastructure of the facility.
- ±10 mm / ±1° positioning accuracy Delivers the placement precision required for repeatable, process-driven production logistics.
- 6-8 hours of rated operation Covers extended shifts of continuous material movement on a single charge cycle.
- Low-profile 1200 x 820 x 280 mm chassis The 280 mm-high body travels under loads and through confined factory and warehouse routes with ease.
Beschreibung

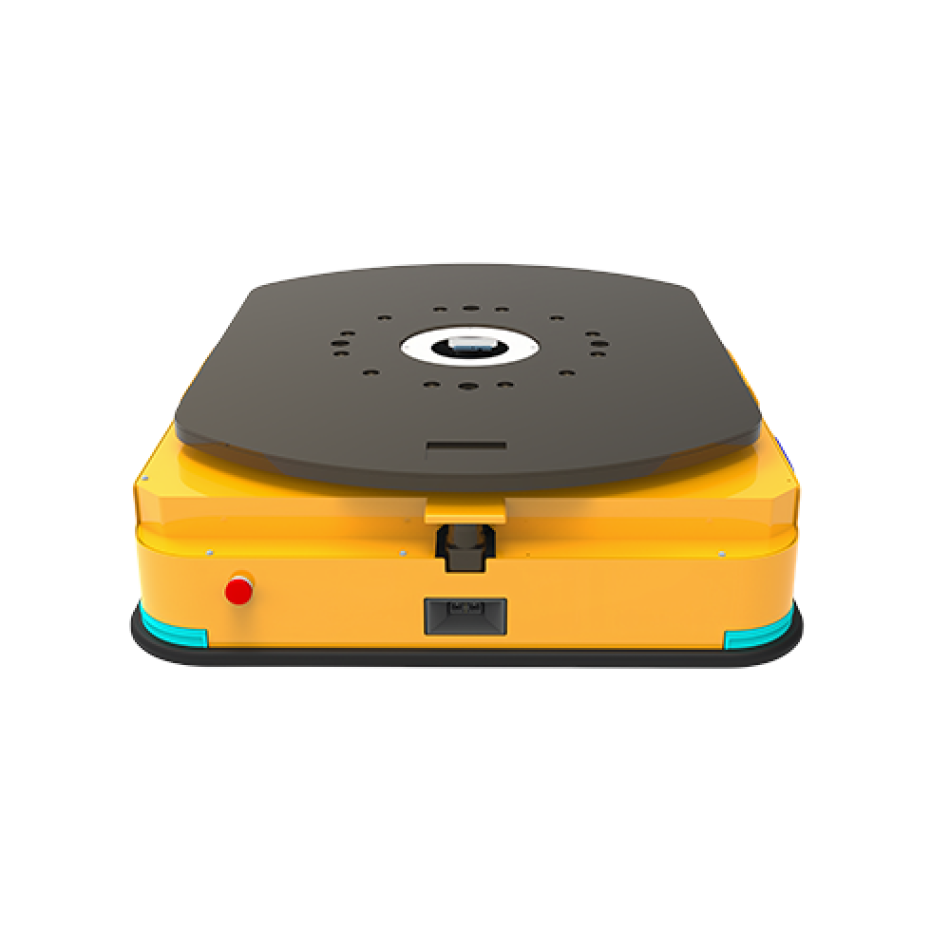

The SIASUN P-T1500D is an autonomous under-ride lift mobile robot built for loads up to 1500 kg. The robot slips beneath a load at its pick-up point — its under-ride geometry gives it precise access — then executes a smooth, stable 60 mm lift before carrying the load to its destination. Guidance is handled by SLAM combined with QR code navigation, or QR code alone, with positioning accuracy of ±10 mm and ±1°, so every pick-up and drop-off lands consistently. As part of SIASUN's under-ride lift family, which offers payload options from 600 to 3,000 kg, the P-T1500D sits in the mid-heavy class for demanding intralogistics work.
The platform is proven in industrial production logistics and fits smart factories, warehouses, and process-driven material handling environments where repeatable transport and safe autonomous operation matter. Each charge supports a rated operating time of 6 to 8 hours, and the chassis keeps a low 1200 x 820 x 280 mm profile for clean under-load access. Purchasing is quotation-based: availability, final configuration, and integration requirements are confirmed before ordering through Robotix Market.
Funktionen
Technische Daten
| Brand | SIASUN |
|---|---|
| Model | P-T1500D |
| Rated Load | 1500 kg |
| Navigation Method | SLAM + QR Code / QR Code |
| Positioning Accuracy | ±10 mm / ±1° |
| Lifting Height | 60 mm |
| Rated Operating Time | 6-8 hours |
| Overall Dimensions | 1200 x 820 x 280 mm |
| Series Payload Options | 600-3,000 kg (under-ride lift family) |
Branchen
Häufig gestellte Fragen
The P-T1500D is an autonomous under-ride lift mobile robot from SIASUN with a 1500 kg rated load. It drives under a load, lifts it 60 mm, and moves it autonomously through factory and warehouse intralogistics routes.
Both share the same under-ride lift concept, navigation options, and 60 mm lifting height, but the P-T1500D carries a higher 1500 kg rated load versus 1000 kg, with slightly different chassis dimensions of 1200 x 820 x 280 mm. The wider family spans 600 to 3,000 kg payload options.
It supports SLAM combined with QR code guidance or QR-code-only navigation, achieving positioning accuracy of ±10 mm and ±1° for consistent pick-up and drop-off placement.
It is deployed in industrial production logistics — smart factories, warehouses, and process-driven material handling — where repeatable transport and safe autonomous operation are required. Its rated operating time is 6 to 8 hours per charge. Unlike the stationary SIASUN V-Series Industrial Robot, it is a mobile transport platform.
The robot is offered on a quotation basis: availability, final configuration, and integration requirements are confirmed before ordering. Request a quote through Robotix Market for pricing and shipping details. The P-T1500D is covered by the manufacturer's warranty as provided by SIASUN.
